Edge Press
ALMEX_IN_A_BOX
Edge Press
- Aluminum frame for 100 PSI models
- Steel frame for 175 PSI Models
- Restores belt edges

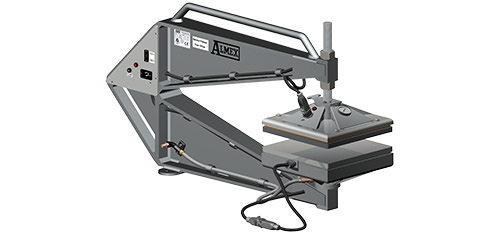

The ALMEX Edge Repair Press is designed to restore belt edges to their original quality. Increasing the integrity and life of the conveyor belt and the systems it encounters.
Why Is Almex Different?
- Aluminum or Steel frame for 100 PSI models
- Steel frame for 175 PSI Models
- Works with all kinds of rubber belt
- Restoring the edge of the belt lengthens belt life
Features
Features
- Several platen sizes available for all belt widths
- Available in multiple voltages
- Suitable for all rubber belt types
- Integral water cooling
- Lightweight aluminum construction for maneuverability
- Two units can be placed end to end to repair longer sections
- Custom engineered models available
Specifications
PLATENS
- Utilizes innovative Almex flexible platen constructed from extruded plank, silicone heating element and durable composite insulation
- Each platen contours to the belt's irregularities, ensuring uniform results. Maximum temperature 163 °C (325 °F)
FRAME
- Solid aluminum or steel construction available
- Includes built-in edge iron support. Standard pneumatic upper platen lift
PRESSURE/COOLING
SUITABLE PUMPS:
- HP25MAX
- HPP20-4
- Pressure available in 7 kg/cm², 100 psi and 12 kg/cm², 175 psi
- For pressures greater than 100 psi a fluid pressure pump and reservoir unit is required
CONTROL PANEL
SUITABLE CONTROLS:
- T2, T6 for all voltages
- Ground fault controls are available on request
- An optional timer is available
