OMD - Fusion Lagging - Orange Mini Diamond
FUSION
OMD - Fusion Lagging - Orange Mini Diamond
- Good friction in wet or muddy installations
- Good shedding capabiility
FusionLagg OMD (Orange Mini Diamond) is a small-profile pulley lagging, ideal for drive pulleys with medium to low tension and belt ratings.
Features and Product Information
Features
- Excellent co-efficient of friction in wet or muddy installations
- Featuring our Fusion Systems proprietary bonding layer technology significantly enhancing the bond between the lagging and the pulley shell
- A natural rubber compound with high abrasion-resistance and water-shedding capability
- The molded mini-diamond pattern offers exceptional grip and wear resistance
- Ideal for drive, head, or tail pulleys requiring a medium profile and particularly suited for wet applications
Product Information
#Properties:
Colour: Orange
Elastomer: NR Blend
Tensile Strength: 20 Mpa 2900 psi
Elongation at Break: 600 %
Density: 1.05 g / cm³
Hardness: 45 (±5) Shore A
Abrasion Resistance: 65 mm³ @ 5 N
Groove Dimensions: 4 mm x 3 mm (3/16” x 1/8”)
Diamond Dimensions: 40 mm x 20 mm (1” x 3/4”)
Specifications
| Product Code | Dimensions (Metric) | Dimensions (Imperial) |
|---|---|---|
| CFL-OMD-650 | 8 mm x 1500 mm x 15.25 M | 5/16" x 59.5" x 50' |
Accessories
EZ Stripper Kit
EZ Stripper Kit
Round Cement Brush - 1"
Round Cement Brush - 1"
Round Cement Brush - 2"
Round Cement Brush - 2"
Super Heavy Duty Knife - 1"
Super Heavy Duty Knife - 1"

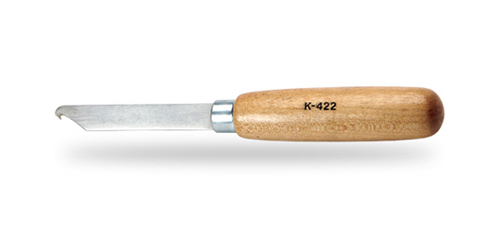

Straight Ply Knife
