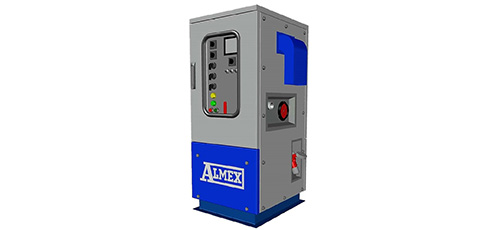

PP-500-ATMZ
The PP-500-ATMZ is designed for portable operation as an in-line spraying system for dust suppression, applicable for many areas along the conveyor system.
For conveyors with dust suppression systems in place, the PP-500-ATMZ can alternatively be used as a secondary in-line unit elsewhere in the system or as a back-up unit during maintenance to avoid stopping production processes.
Suitable Applications:
- Conveyor Transfer Hopper
- Discharge Hopper
- Crusher
- Upper belt spray (medium droplets)
Features and Product Information
Features
- Made from powder-coated SAE 304 Steel (other than bracket and support stand)
- Fully Automated operations with programmable mixing/dilutions ratios
- Full featured control panel
- Includes:
- Spray Head
- Distribution Head
- Bracket for head chute positioning
- Bracket for skirting box positioning
- Mounting bracket
- Quick connection head and hose.
Product Information
Options:
- Remote Wi-Fi Operation from an Android or Windows tablet or mobile phone
- Control panel as a separate unit for test or maintenance purposes
Specifications
| Description | Detail |
|---|---|
| Capacity: | 1200 LPH – 5000 LPH (317 Gal/hr – 1321 Gal/hr) |
| Coverage: | 80 M (262.5‘) maximum pump discharge (sea level) |
| Pressure: | Operating Pressure Max 16 Bar |
| Power: | 1.1 -1.49 Kw (1.5 - 2 HP), 380 VAC, 50/60 Hz, 3 phase |
| Chemical Add: | Non-Polymer Solutions, max. 100 LPH (26 Gal/hr) |
| Inlet Port: | For Fresh Water: quick coupling type dia. 31.75 mm (1 ¼”) |
| For Chemical add: LPC Quick connector | |
| Weight: | 110 -150 kg (242.5 - 331 Lbs.) |
| Dimensions: | 700 mm x 735 mm x 1173 mm (27.6” x 28.9” x 46.1”) |
Accessories
AMS-3000 M/C Dust control for metals & cement applications
AMS-3000 M/C Dust control for metals & cement applications
AMS-3000 - Dust control for coal, limestone and quarry applications
AMS-3000 - Dust control for coal, limestone and quarry applications

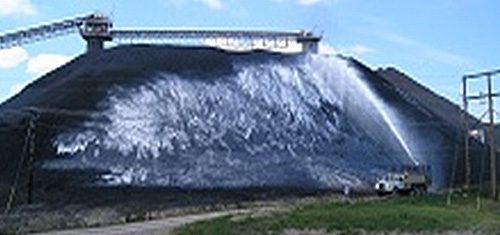

AMS-1100 C Coal Stockpile Sealing Applications
