SkidPump AVT-9900 SERIES

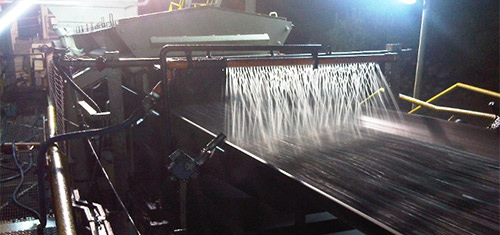

Expandable design, suitable for inline dust control applications up to 8000 TPH conveyor capacity. Best technique for quickly and easily suppressing dust with low application cost as the sprays are activated only upon loading cycles.
Features
Features
- Compact arrangement of pump and mixing unit specially designed for customer-provided, enclosed-site requirements
- Fully expandable custom designs
- Programmable PLC interface
- Suitable for Inline Dust Control Applications for up to 8000 TPH of belt conveyor capacity
- Sheltered or indoor designs
- Easy to operate remote or external panel controls
- Designed for Polymer and Surfactant-based chemicals
Specifications
| Specification Type | Detail |
|---|---|
| Capacity: | Max 25 M³ (882.9 ft³) with Tt Head of 60 M (196.9 ft) |
| Working Pressure: | Max 10 bar (145 PSI) |
| Power Requirements: | 1 x 15 Kw, 3 phase, 380V |
| Dimensions : | 1120 mm (H) X 1430 mm (W) X 500 mm (L) (44” x 56.3” x 19.7”) |
| Operating mode: | Manual or Fully automatic |
| Display Control: | Wientek HMI 178 mm (7”) Interactive Touch Screen |
| Inlet Port: | Fresh water, threaded, 76.2 mm (3”) diameter. Chemical threaded 12.7 mm 1/2”) diameter |
| Outlet Port: | Solution mixture, threaded 76.2 mm (3”) diameter |
