StripLagg URDS-SP
FUSION
StripLagg URDS-SP
- 1/2" thick lagging
- Specially formulated and made in-house
- Special Fusion bonding layer
- Longer-lasting, better wearability
Fusion StripLagg URDS-SP (Universal Rubber Drive System -Small Pattern) is a smaller profile pulley lagging, based on the original URDS triangular profile, ideal for smaller drive pulleys with low to medium tension.
Features and Product Information
Features
- FusionLagg URDS-SP is designed to be applied to the pulley with the grooves in the lagging running horizontal to the pulley face
- The profile pattern provides effective surface contact with the conveyor belt
- The open area or spacing between the profiles effectively removes product fines, moisture and water when present on the system
- Exceptional belt tracking, creating exceptional wear life
- Featuring our Fusion Systems proprietary bonding layer technology significantly enhancing the bond between the lagging and the pulley shell
- Easy to install
- Better system up-time, lowering operational expenses
- Universal rubber sheet offers little or no waste
- Small diamond profile material provided in 12” wide strips
- Available in 12 mm ( 1/2”) thickness
Product Information
##Properties:
Colour: Black
Elastomer: NR/BR
Tensile Strength: 20 Mpa 2700 psi
Elongation at Break: 500 %
Density: 1.12 g / cm³
Hardness: 60 (±5) Shore A
Abrasion Resistance: <105 mm³
Specifications
| Product Code (append ‘FR’ for FRAS, or ‘MSHA’ for MSHA grade) | Belt Width (Metric/Imperial) | Overall Strip Length (Metric/Imperial) |
|---|---|---|
| FL-SURDS-SP-1218 | 457 mm / 18" | 660 mm / 26" |
| FL-SURDS- SP-1224 | 610 mm / 24" | 813 mm / 32" |
| FL-SURDS- SP-1230 | 762 mm / 30" | 965 mm / 38" |
| FL-SURDS- SP-1236 | 914 mm / 36" | 1118 mm / 44" |
| FL-SURDS- SP-1242 | 1067 mm / 42" | 1270 mm / 50" |
| FL-SURDS- SP-1248 | 1219 mm / 48" | 1422 mm / 56" |
| FL-SURDS- SP-1254 | 1372 mm / 54" | 1575 mm / 62" |
| FL-SURDS- SP-1260 | 1524mm / 60" | 1727 mm / 68" |
| FL-SURDS- SP-1266 | 1676 mm / 66" | 1880 mm / 74" |
| FL-SURDS- SP-1272 | 1829 mm / 72" | 2032 mm / 80" |
| FL-SURDS- SP-1278 | 1981 mm / 78" | 2184 mm / 86" |
| FL-SURDS- SP-1284 | 2134 mm / 84" | 2334 mm / 92" |
| FL-SURDS- SP-1286 | 2184 mm / 86" | 2388 mm / 94" |
| FL-SURDS- SP-1296 | 2438 mm / 96" | 2642 mm / 104" |
For example, FL-SURDS-SP-1218 would be a 460 mm (18”) belt width, 12 mm (1/2”) thick lagging, with no FRAS or MSHA requirement. If the lagging needed to be MSHA-grade, it would be FL-SURDS-SP-1218-MSHA.

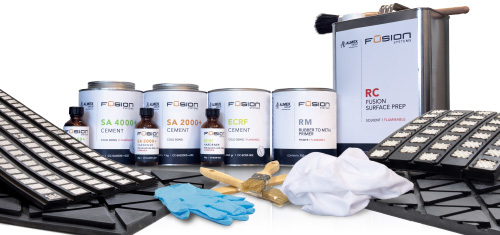

Accessories
