T6 Ground Fault Series control panels are available 30amp and 60amp with or without pump receptacles.
Features
Models:
T6: Environmentally protected against dust and splashing wter to IP66 standard. Dual omron digital termperature control and indication. Designed for large vulcanizing presses requiring single or 3 phase power supply. 30 amps total (13.7 amps per platen maximum) or 60 amps total (27 amps per platen maximum). Standard auxiliary pump receptacle. Includes 2 platen cables removeable and one power supply cable in separate case. 18.7 " (475 mm) x 7" (178 mm) x 14.8" (376mm). 24lbs (11kg).
T6L: Includes all features of the T6 with the additiona of data logging capabilities. 8 GB of data captured on the panel. Temperature and pressure data can be exported to USB. Includes 2 platen cables and one power supply cable in separate case. 19.9 " (505 mm) x 10" (255 mm) x 16" (406 mm). 19.8 lbs (13.5 kg).

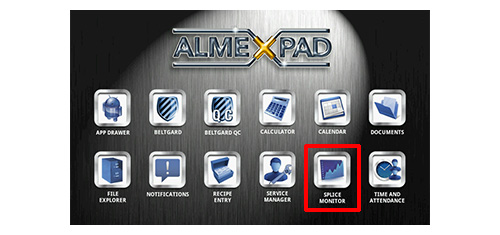

T6-GFXP: Operates 1 set of GF platens. 30 amps total (13.7 amps maximu per platen) or 60 amps total (27 amps per platen maximum). WIFI connectiveity to Almexpad and Android devises. Includes pump receptacle. Receptacles for thermocouple and pressure sensors. Network connections to synchronize with multiple control panesl. Includes two platen cables and one power supply cable (all removeable). 22.8" (579mm) x 18.3" (465 mm) x 11.7" (297 mm). 56 lbs (25.4kg).
Options
T6T: Optional timer and audio alarm
T6TC: Timer, audio alarm and automatic water cooling and air purge. This panel is designed for use with in-line or plant water systems. 8.5" (215 mm) x 8.5" (215 mm) x 4.5" (114 mm). 13 lbs (5.9kg).
T6LTC: Data Logging, Timer, audio alarm and automatic water cooling and air purge. This panel is designed for use with in-line or plant water systems. 8.5" (215 mm) x 8.5" (215 mm) x 4.5" (114 mm). 13 lbs (5.9kg).
Product Information
T6: Remote Temperature Control Panel
T6L: Remote Temperature Control Panel with splice data logging capability
T6-GFXP: Remote Temperature Control Panel with Ground Fault
Models Available:
Model | Description | Phase | Amps |
---|---|---|---|
T6 | Remote Temperature Control Panel | Single, 3 Phase | 30 amps, 60 amps |
T6L | Remote Temperature Control Panel | Single, 3 Phase | 30 amps, 60 amps |
T6-GFXP | Remote Temperature Control Panel with GF | Single, 3 Phase | 30 amps, 60 amps |
